[Bug] KubeRay seems not to work on minikube on M1 macs.

[kevin85421]

Search before asking

• I searched the issues and found no similar issues.

KubeRay Component

ray-operator

What happened + What you expected to happen

I followed the instruction in the document. When I try to deploy the ray cluster with ray-cluster.autoscaler.yaml, both the head node and worker nodes will crash with OOM. Next, I increased both memory limit and memory request configuration for both head and worker, and the nodes will not OOM but containers will still exit with Error as shown in the following figures.

log for head node

autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/gcs_utils.py", line 120, in check_health
autoscaler     resp = stub.CheckAlive(req, timeout=timeout)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053084.513131210","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053084.513043376","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/gcs_utils.py", line 120, in check_health
autoscaler     resp = stub.CheckAlive(req, timeout=timeout)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053096.398618757","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053096.398526049","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/gcs_utils.py", line 120, in check_health
autoscaler     resp = stub.CheckAlive(req, timeout=timeout)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053107.646716096","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053107.646629554","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
autoscaler 2022-09-01 10:25:19,870    INFO monitor.py:196 -- Starting autoscaler metrics server on port 44217
autoscaler 2022-09-01 10:25:19,885    INFO monitor.py:213 -- Monitor: Started
autoscaler 2022-09-01 10:25:20,100    INFO node_provider.py:155 -- Creating KuberayNodeProvider.
autoscaler 2022-09-01 10:25:20,102    INFO autoscaler.py:250 -- disable_node_updaters:True
autoscaler 2022-09-01 10:25:20,102    INFO autoscaler.py:259 -- disable_launch_config_check:True
autoscaler 2022-09-01 10:25:20,103    INFO autoscaler.py:270 -- foreground_node_launch:True
autoscaler 2022-09-01 10:25:20,103    INFO autoscaler.py:280 -- worker_liveness_check:False
autoscaler 2022-09-01 10:25:20,104    INFO autoscaler.py:288 -- worker_rpc_drain:True
autoscaler 2022-09-01 10:25:20,105    INFO autoscaler.py:334 -- StandardAutoscaler: {'provider': {'type': 'kuberay', 'namespace': 'default', 'disable_node_updaters': True, 'disable_launch_config_check': True, 'foreground_node_launch': True, 'worker_liveness_check': False, 'worker_rpc_drain': True}, 'cluster_name': 'raycluster-autoscaler', 'head_node_type': 'head-group', 'available_node_types': {'head-group': {'min_workers': 0, 'max_workers': 0, 'node_config': {}, 'resources': {'CPU': 2, 'memory': 2000000000}}, 'small-group': {'min_workers': 1, 'max_workers': 300, 'node_config': {}, 'resources': {'CPU': 2, 'memory': 1000000000}}}, 'max_workers': 300, 'idle_timeout_minutes': 1.0, 'upscaling_speed': 1000, 'file_mounts': {}, 'cluster_synced_files': [], 'file_mounts_sync_continuously': False, 'initialization_commands': [], 'setup_commands': [], 'head_setup_commands': [], 'worker_setup_commands': [], 'head_start_ray_commands': [], 'worker_start_ray_commands': [], 'auth': {}}
autoscaler 2022-09-01 10:25:20,118    INFO monitor.py:354 -- Autoscaler has not yet received load metrics. Waiting.
autoscaler 2022-09-01 10:25:25,132    INFO monitor.py:354 -- Autoscaler has not yet received load metrics. Waiting.
ray-head 2022-09-01 10:25:18,692    INFO usage_lib.py:479 -- Usage stats collection is enabled by default without user confirmation because this terminal is detected to be non-interactive. To disable this, add `--disable-usage-stats` to the command that starts the cluster, or run the following command: `ray disable-usage-stats` before starting the cluster. See https://docs.ray.io/en/master/cluster/usage-stats.html for more details.
ray-head 2022-09-01 10:25:18,694    INFO scripts.py:719 -- Local node IP: 172.17.0.5
ray-head 2022-09-01 10:25:28,027    SUCC scripts.py:756 -- --------------------
ray-head 2022-09-01 10:25:28,028    SUCC scripts.py:757 -- Ray runtime started.
ray-head 2022-09-01 10:25:28,029    SUCC scripts.py:758 -- --------------------
ray-head 2022-09-01 10:25:28,030    INFO scripts.py:760 -- Next steps
ray-head 2022-09-01 10:25:28,030    INFO scripts.py:761 -- To connect to this Ray runtime from another node, run
ray-head 2022-09-01 10:25:28,030    INFO scripts.py:766 --   ray start --address='172.17.0.5:6379'
ray-head 2022-09-01 10:25:28,031    INFO scripts.py:780 -- Alternatively, use the following Python code:
ray-head 2022-09-01 10:25:28,031    INFO scripts.py:782 -- import ray
ray-head 2022-09-01 10:25:28,032    INFO scripts.py:795 -- ray.init(address='auto')
ray-head 2022-09-01 10:25:28,032    INFO scripts.py:799 -- To connect to this Ray runtime from outside of the cluster, for example to
ray-head 2022-09-01 10:25:28,033    INFO scripts.py:803 -- connect to a remote cluster from your laptop directly, use the following
ray-head 2022-09-01 10:25:28,033    INFO scripts.py:806 -- Python code:
ray-head 2022-09-01 10:25:28,033    INFO scripts.py:808 -- import ray
ray-head 2022-09-01 10:25:28,034    INFO scripts.py:814 -- ray.init(address='ray://<head_node_ip_address>:10001')
ray-head 2022-09-01 10:25:28,035    INFO scripts.py:820 -- If connection fails, check your firewall settings and network configuration.
ray-head 2022-09-01 10:25:28,035    INFO scripts.py:826 -- To terminate the Ray runtime, run
ray-head 2022-09-01 10:25:28,036    INFO scripts.py:827 --   ray stop
ray-head 2022-09-01 10:25:28,036    INFO scripts.py:905 -- --block
ray-head 2022-09-01 10:25:28,037    INFO scripts.py:907 -- This command will now block forever until terminated by a signal.
ray-head 2022-09-01 10:25:28,037    INFO scripts.py:910 -- Running subprocesses are monitored and a message will be printed if any of them terminate unexpectedly. Subprocesses exit with SIGTERM will be treated as graceful, thus NOT reported.
autoscaler 2022-09-01 10:25:30,684    INFO autoscaler.py:386 --
autoscaler ======== Autoscaler status: 2022-09-01 10:25:30.682530 ========
autoscaler Node status
autoscaler ---------------------------------------------------------------
autoscaler Healthy:
autoscaler  1 head-group
autoscaler  1 small-group
autoscaler Pending:
autoscaler  (no pending nodes)
autoscaler Recent failures:
autoscaler  (no failures)
autoscaler
autoscaler Resources
autoscaler ---------------------------------------------------------------
autoscaler Usage:
autoscaler  0.0/4.0 CPU
autoscaler  0.00/2.794 GiB memory
autoscaler  0.00/0.571 GiB object_store_memory
autoscaler
autoscaler Demands:
autoscaler  (no resource demands)
autoscaler 2022-09-01 10:25:31,756    INFO monitor.py:369 -- :event_summary:Resized to 4 CPUs.
Stream closed EOF for default/raycluster-autoscaler-head-8zfmq (ray-head)
autoscaler 2022-09-01 10:25:36,786    ERROR monitor.py:439 -- Error in monitor loop
autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 484, in run
autoscaler     self._run()
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 338, in _run
autoscaler     self.update_load_metrics()
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 241, in update_load_metrics
autoscaler     response = self.gcs_node_resources_stub.GetAllResourceUsage(request, timeout=60)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053136.774460429","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053136.774406762","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
autoscaler The Ray head is not yet ready.
autoscaler Will check again in 5 seconds.
autoscaler The Ray head is not yet ready.
autoscaler Will check again in 5 seconds.
autoscaler The Ray head is not yet ready.
autoscaler Will check again in 5 seconds.
autoscaler The Ray head is ready. Starting the autoscaler.
autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 484, in run
autoscaler     self._run()
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 338, in _run
autoscaler     self.update_load_metrics()
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 241, in update_load_metrics
autoscaler     response = self.gcs_node_resources_stub.GetAllResourceUsage(request, timeout=60)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053136.774460429","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053136.774406762","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
autoscaler
autoscaler During handling of the above exception, another exception occurred:
autoscaler
autoscaler Traceback (most recent call last):
autoscaler   File "/home/ray/anaconda3/bin/ray", line 8, in <module>
autoscaler     sys.exit(main())
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/scripts/scripts.py", line 2588, in main
autoscaler     return cli()
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/click/core.py", line 1128, in __call__
autoscaler     return self.main(*args, **kwargs)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/click/core.py", line 1053, in main
autoscaler     rv = self.invoke(ctx)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/click/core.py", line 1659, in invoke
autoscaler     return _process_result(sub_ctx.command.invoke(sub_ctx))
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/click/core.py", line 1395, in invoke
autoscaler     return ctx.invoke(self.callback, **ctx.params)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/click/core.py", line 754, in invoke
autoscaler     return __callback(*args, **kwargs)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/scripts/scripts.py", line 2334, in kuberay_autoscaler
autoscaler     run_kuberay_autoscaler(cluster_name, cluster_namespace)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/kuberay/run_autoscaler.py", line 63, in run_kuberay_autoscaler
autoscaler     retry_on_failure=False,
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 486, in run
autoscaler     self._handle_failure(traceback.format_exc())
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/autoscaler/_private/monitor.py", line 453, in _handle_failure
autoscaler     ray_constants.DEBUG_AUTOSCALING_ERROR, message, overwrite=True
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/client_mode_hook.py", line 105, in wrapper
autoscaler     return func(*args, **kwargs)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/experimental/internal_kv.py", line 94, in _internal_kv_put
autoscaler     return global_gcs_client.internal_kv_put(key, value, overwrite, namespace) == 0
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/gcs_utils.py", line 177, in wrapper
autoscaler     return f(self, *args, **kwargs)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/ray/_private/gcs_utils.py", line 296, in internal_kv_put
autoscaler     reply = self._kv_stub.InternalKVPut(req, timeout=timeout)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 946, in __call__
autoscaler     return _end_unary_response_blocking(state, call, False, None)
autoscaler   File "/home/ray/anaconda3/lib/python3.7/site-packages/grpc/_channel.py", line 849, in _end_unary_response_blocking
autoscaler     raise _InactiveRpcError(state)
autoscaler grpc._channel._InactiveRpcError: <_InactiveRpcError of RPC that terminated with:
autoscaler     status = StatusCode.UNAVAILABLE
autoscaler     details = "failed to connect to all addresses"
autoscaler     debug_error_string = "{"created":"@1662053141.828487750","description":"Failed to pick subchannel","file":"src/core/ext/filters/client_channel/client_channel.cc","file_line":3134,"referenced_errors":[{"created":"@1662053141.828483875","description":"failed to connect to all addresses","file":"src/core/lib/transport/error_utils.cc","file_line":163,"grpc_status":14}]}"
autoscaler >
Stream closed EOF for default/raycluster-autoscaler-head-8zfmq (autoscaler)

Reproduction script

minikube start --memory 6144 --cpus 4
kubectl create -k "github.com/ray-project/kuberay/ray-operator/config/default?ref=v0.3.0&timeout=90s"
kubectl apply -f https://raw.githubusercontent.com/ray-project/kuberay/release-0.3/ray-operator/config/samples/ray-cluster.autoscaler.yaml

Anything else

No response

Are you willing to submit a PR?

• Yes I am willing to submit a PR!

[kevin85421]

cc @DmitriGekhtman

[DmitriGekhtman]

Well...that's no good. Let me try to reproduce that.

What happens if you instead use KinD with the default set-up (kind create cluster with no arguments)?

[DmitriGekhtman]

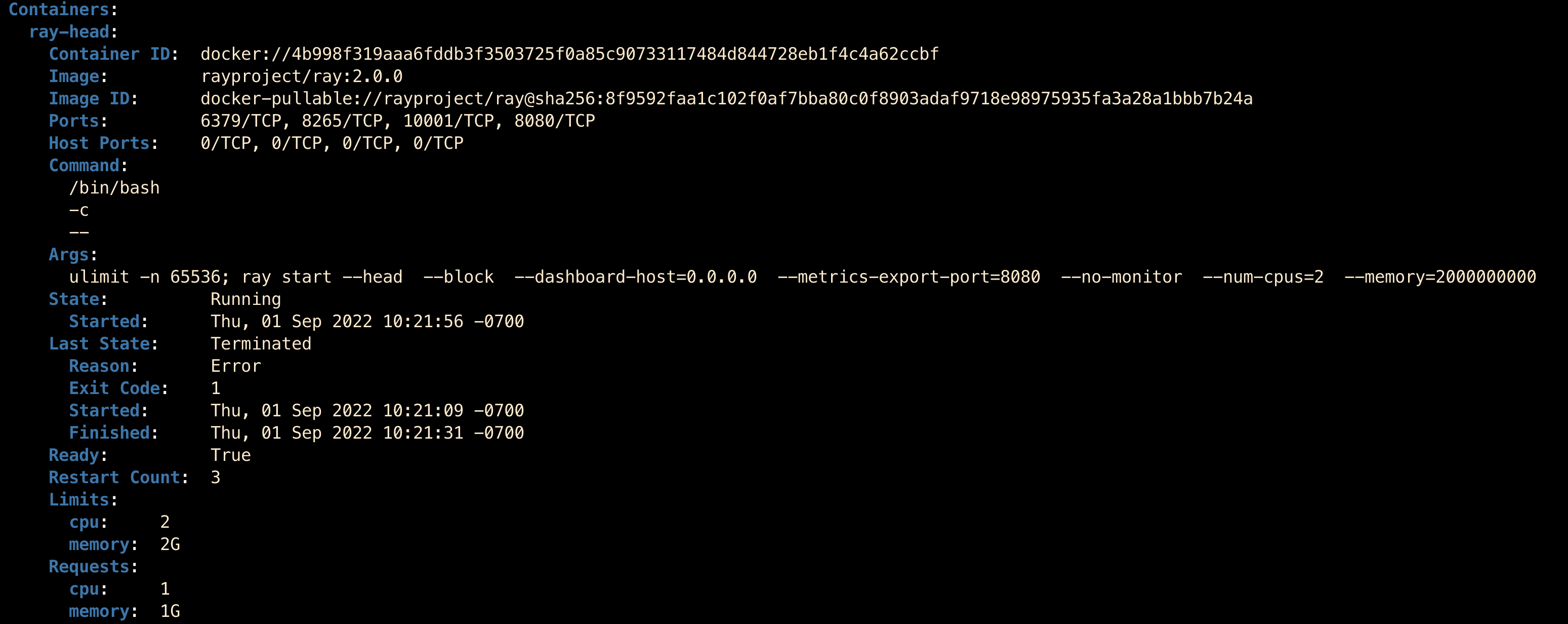

I'm also surprised by the --num-cpus 2 that appeared in the container entry-point -- I'd expect it to be --num-cpus 1.

[DmitriGekhtman]

I was not able to reproduce the issue -- we can take a look together at what's going on.

[DmitriGekhtman]

From our discussion, it looks like it might be specific to Minikube on M1 Macs.
:(

[kevin85421]

TODO: Try to use kind on M1 Macs. If I can still reproduce this bug on kind cluster, M1 is highly possible to be the root cause.

[20220921 Updated]
@jasoonn tried to deploy Kuberay with kind on Mac M1. He faced the same bug as me.

[kevin85421]

[Possible Solution]

1. Update ray-operator/Dockerfile to RUN CGO_ENABLED=0 GOOS=linux GOARCH=arm64 GO111MODULE=on go build -a -o manager main.go
2. Build a multi-architecture image for Kuberay with docker/buildx.
3. Build a multi-architecture image for Ray with docker/buildx.

cc @DmitriGekhtman

[kevin85421]

ray-project/ray#31522 enables users to run Ray in Docker containers on ARM machines (including Mac M1) and on ARM cloud instances (e.g. AWS Graviton).

Use case: AWS Graviton3 featuring Arm Neoverse V1 is up to 1.8x faster than x86 for deep learning inference workloads

I will try to run KubeRay on Mac M1 with the new images.

cc @DmitriGekhtman
