Example of Electron App for Mysql DB Migration and Tools

Use Case: Migrate ACL Tables

About

This package contains DB migration for Basic ACL tables. Provides migration and rollback features.

Created based on Electron Vite, you may want to see Electron Vite Generated Readme.

What's inside

  // dependencies
  {
    "mysql2": "^3.14.0",
    "react": "^19.1.0",
    "react-dom": "^19.1.0",
    "sequelize": "^6.37.7",
    "sqlite3": "^5.1.7"
  }

  // devDevepencies
  {
    "@tailwindcss/vite": "^4.0.17",
    "@types/dateformat": "^5",
    "@types/node": "^22.13.14",
    "@types/react": "^19.0.12",
    "@types/react-dom": "^19.0.4",
    "@typescript-eslint/eslint-plugin": "^8.29.0",
    "@typescript-eslint/parser": "^8.29.0",
    "@vitejs/plugin-react": "^4.3.4",
    "daisyui": "^5.0.9",
    "dateformat": "^5.0.3",
    "dotenv": "^16.4.7",
    "dotenv-expand": "^12.0.1",
    "electron": "^35.1.2",
    "electron-builder": "^26.0.12",
    "electron-is-dev": "^3.0.1",
    "eslint": "^9.23.0",
    "eslint-plugin-react-hooks": "^5.2.0",
    "eslint-plugin-react-refresh": "^0.4.19",
    "pg-hstore": "^2.3.4",
    "react-error-overlay": "^6.1.0",
    "react-router": "^7.4.1",
    "tailwindcss": "^4.0.17",
    "ts-node": "^10.9.2",
    "typescript": "^5.8.2",
    "uuid": "^11.1.0",
    "vite": "^6.2.4",
    "vite-plugin-electron": "^0.29.0",
    "vite-plugin-electron-renderer": "^0.14.6",
    "vite-plugin-node-polyfills": "^0.23.0"
  }

Update Packages

Note

This package uses the latest stable version of sequelize when the code was written, which is the "sequelize": "^6.37.7" version, read the documentation here.

Install

Note

Assuming you have Node.js installed on your system, Introduction to Node.Js. We will use yarn as a package manager, getting started with yarn.

Clone repository

git clone https://github.com/inoshadi/example-electron-migration.git

or

git clone [email protected]:inoshadi/example-electron-migration.git

using GitHub CLI

gh repo clone inoshadi/example-electron-migration

Install packages
```
yarn
```
Generate app key
```
yarn key:generate
```
This command will generate VITE_APP_KEY and copy .env.example file to .env accordingly.

Setup environtments

Open file .env

Update your environments

VITE_APP_KEY=""
VITE_APP_INSTANCE="instance-id"
VITE_APP_NAME="Example Electron DB Migration"
VITE_APP_VER="0.0.1"
VITE_APP_PORT=3001
VITE_SQLITE="sqlite3.db"
VITE_DEV_STORAGE="dev-storage"

Running dev

yarn dev

Build

yarn build
This command will build a release package according to your system.
You can find your app installer within release directory.
- macOS
- /release/[app-version]/${productName}-Mac-arm64-${version}-Installer.dmg
- /release/[app-version]/${productName}-Mac-x64-${version}-Installer.dmg
- Windows
- /release/[app-version]/${productName}-Windows-x64-${version}-Setup.exe
- Linux
- /release/[app-version]/${productName}-Linux-${version}.AppImage

Target specific OS

macOS (arm64, x64)
- yarn build-mac
Windows (x64)
- yarn build-win
Linux (AppImage)
- yarn build-linux

Available commands

{
// ...
  "scripts": {
    "dev": "vite",
    "build": "tsc && vite build && electron-builder",
    "build-mac": "tsc && vite build && electron-builder --mac",
    "build-win": "tsc && vite build && electron-builder --win",
    "build-linux": "tsc && vite build && electron-builder --linux",
    "lint": "eslint . --ext ts,tsx --report-unused-disable-directives --max-warnings 0",
    "preview": "vite preview",
    "key:generate": "yarn ts-node-import bin/key-generate.ts",
    "migrate:make": "yarn ts-node-import bin/migration-make.ts",
    "ts-node-import": "node --import 'data:text/javascript,import { register } from \"node:module\"; import { pathToFileURL } from \"node:url\"; register(\"ts-node/esm\", pathToFileURL(\"./\"));'"

  },
// ...
}

Create your own migration scripts

Migration path

All migration scripts are stored at the migrations/ directory.

  migrations/
  ├── 20250308150001_create_users.js   // migration scripts
  ├── 20250308150002_create_roles.js   // migration scripts
  ├── migration.json                   // migration list
  ├── migration.ts                     // migration module

Migration entries

migration.json provides all your migrations for your database. Every list must have one corresponding file with the same name e.g. : 20250308150001_create_users.js will contains migration scripts for 20250308150001_create_users migration.

// migrations/migration.json

[
  "20250308150001_create_users",
  "20250308150002_create_roles",
  "20250308150003_create_permissions",
  "20250308150004_create_user_has_roles",
  "20250308150005_create_role_has_permissions",
  "20250308150006_create_user_has_permissions"
]

Migration scripts

Example scripts

// migrations/20250308150001_create_users.js

class CreateUsers {
  //properties
  static tableInit = 'users'
  static type = 'create'

  static upSql = 'CREATE TABLE `:tablename` (\n' +
      '  `id` char(36) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NOT NULL,\n' +
      '  `username` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NOT NULL,\n' +
      '  `name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NOT NULL,\n' +
      '  `email` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci DEFAULT NULL,\n' +
      '  `password` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NOT NULL,\n' +
      '  `remember_token` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci DEFAULT NULL,\n' +
      '  `created_at` timestamp NULL DEFAULT NULL,\n' +
      '  `updated_at` timestamp NULL DEFAULT NULL,\n' +
      '  `deleted_at` timestamp NULL DEFAULT NULL,\n' +
      '  PRIMARY KEY (`id`),\n' +
      '  UNIQUE KEY `users_username_unique` (`username`)\n' +
      ') ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci'

  static downSql = " DROP TABLE :tablename "

  //constructor
  constructor(sequelize, prefix = 'wid_') {
      this.sequelize = sequelize
      this.table = prefix + this.constructor.tableInit
      this.action = this.constructor.type
      return this
  }

  // public methods
  async up() {
      //
      return await this.sequelize.query(this.getUpSql().replaceAll("\n", ""))
  }
  async down() {
      //
      return await this.sequelize.query(this.getDownSql().replaceAll("\n", ""))
  }

  getUpSql() {
      return this.constructor.upSql.replaceAll(":tablename", this.table)
  }
  getDownSql() {
      return this.constructor.downSql.replaceAll(":tablename", this.table)
  }

}

export default CreateUsers

Class Properties
- tableInit

  This property will be your initial table name. During runtime it will be prefixed with provided prefix from app Connection page, see screenshot.
- upSql

  This string will be executed during migration.
- downSql

  This string will be executed during rollback.

Tip

Using :tablename keyword:
Remember to use the string :tablename for your migration script table name, instead of the real table name, as this will be replaced with prefix+tableInit.

Use `migrate:make` command

This command helps you to create a migration entry and a JavaScript file.

Syntax
```
yarn migrate:make [action] [table]
```
- [action]

  As a best practice, we can use the word create for this argument.
- [table]

  It is recommended to use the snake_case form for this argument.

Example:

yarn migrate:make create my_table_names

console.log result:

[
  '---------',
  [
    'Added new migration entry:',
    '20250413153917_create_my_table_names'
  ],
 '---------'
]
[
 '---------',
 [
   'Added new migration script:',
   'migrations/20250413153917_create_my_table_names.js'
 ],
 '---------'
]

Use `--no-uuid` option

This argument will make the script generate the id field as INT UNSIGNED AUTO_INCREMENT. If you omit the argument it will be generated as UUID primary key by default.

Usage example:

yarn migrate:make create autoincrement_tables --no-uuid

Use `--dry` option

This argument will make the script display the migration script you created in your console window, no migration files will be added or changed.

Usage example:

yarn migrate:make create my_tables --dry

Usage example with --no-uuid:

yarn migrate:make create nouuid_tables --no-uuid --dry

App Theme

This package utilizes the theme support from DaisyUI, learn more.

Use built-in corporate theme

<!-- file index.html -->
<!doctype html>
  <html lang="en" data-theme="corporate">
    <head>
    ....
 </html>

Put your theme name as the value of the data-theme attribute e.g. <html data-theme="your-theme" ...>.

You need to activate the theme support. See src/app/index.css.

@import "tailwindcss";

@plugin "daisyui" {
  themes: all;
}

App Screnshoots

App Connection Page

App Main Page

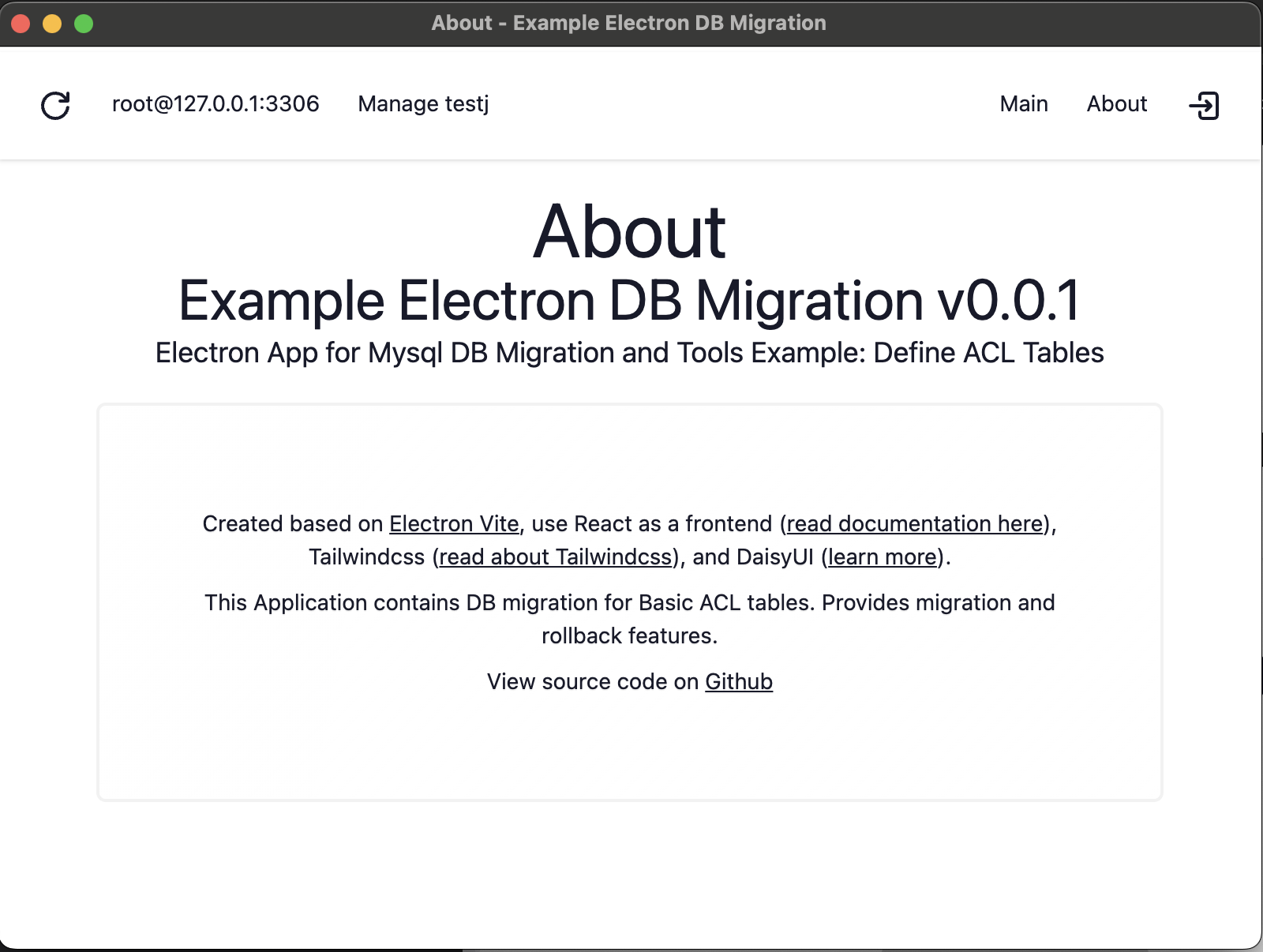

App About Page

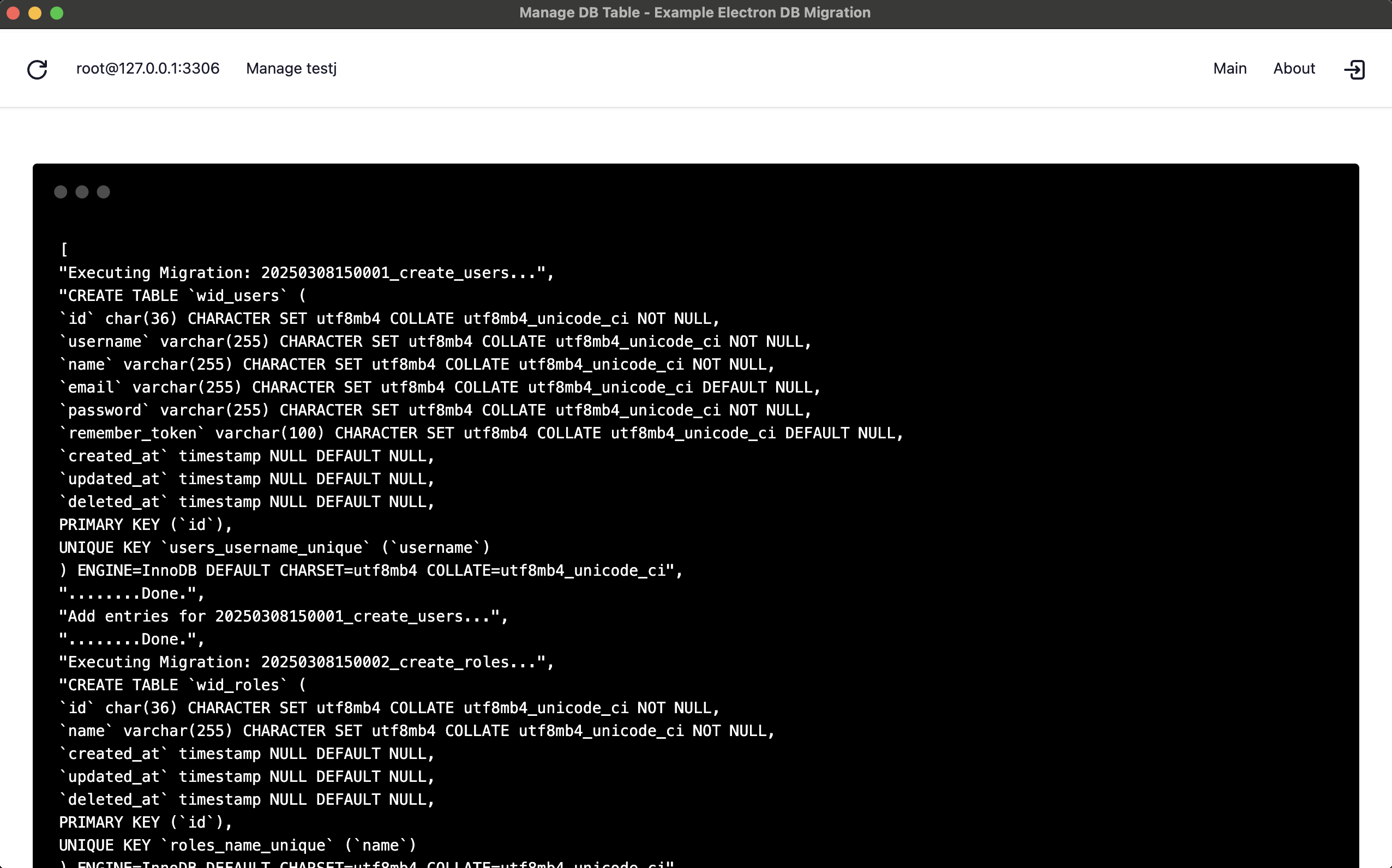

App Manage Migration Page

Using Production DB

Caution

Some migration operations are destructive, which means they may cause you to lose data. Use with caution against your production database.
